6.075,00DKK
Easee Home, designet og fremstillet i Norge.
Den perfekte hjemmelader som kan alt hvad du har brug for. Easee Home kan lade op til 22 kW og har både wifi + 4G på livstid inkluderet. Ladeboksen har høj sikkerhed med integreret DC-beskyttelse (RCD B) – meget nem installation.
Mulighed for at forbinde Easee Home med appen “Monta”. Brug “Smart Charge” og oplad når strømmen er billigst eller mest klimavenlig + Mange andre funktioner.
(Valgfrit) Zapp – elrefusion abonnement:
Easee Home er godkendt til elrefusion da den har en indbygget Class B elmåler. For kun 69 kr./md. får du 1,10kr./kWh refunderet for den strøm, du bruger på at oplade din el-bil. Læs mere og bestil abonnement her.

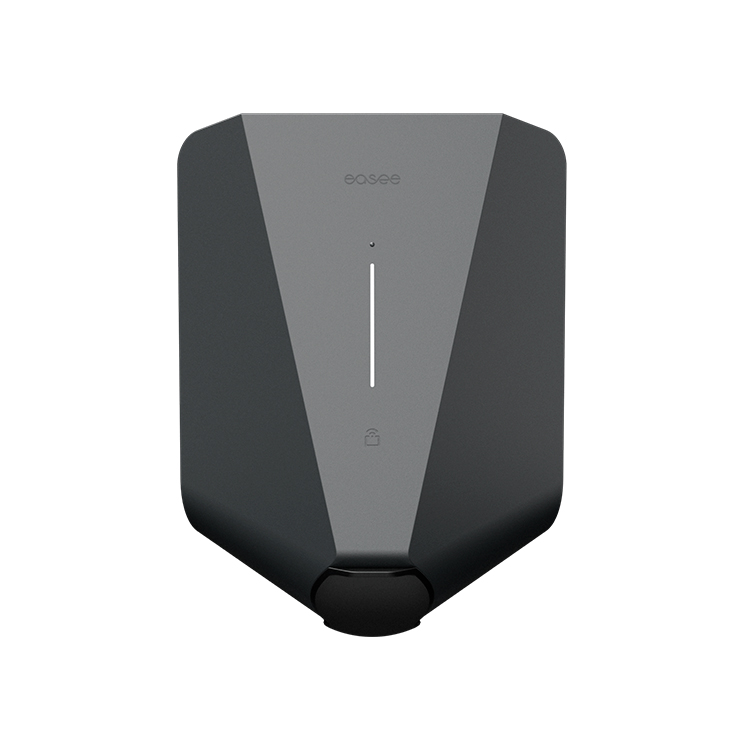

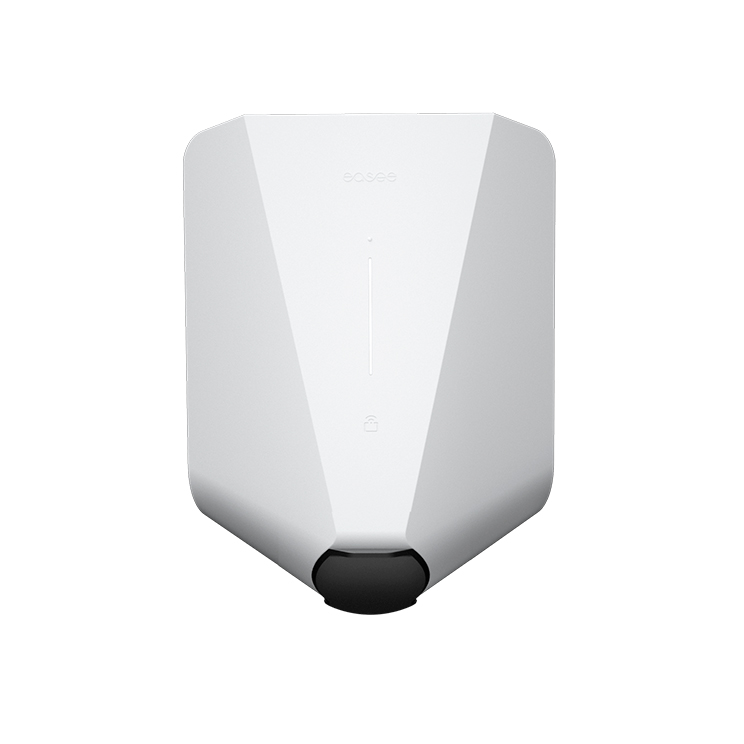

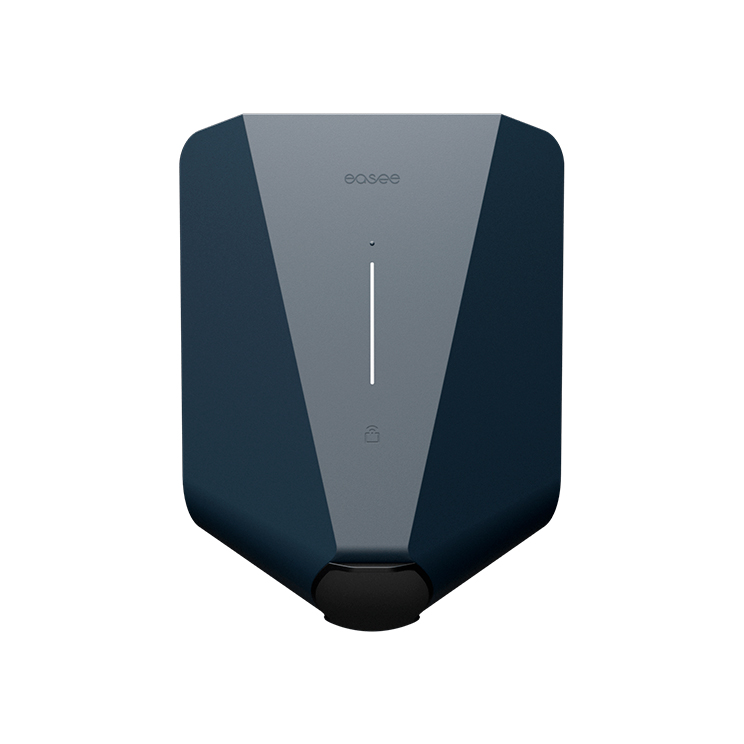

Vælg mellem 5 forskellige farver.
Du kan tilkøbe et Type 2 kabel i længder fra 3-10 meter.
Se venligst vores information video ang. Easee Home.

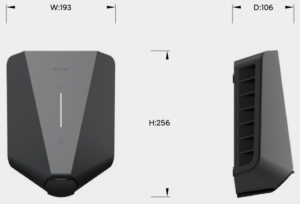

Measurement in mm:
W:193
H:256
D106
General:
Dimension (mm): H: 256 x W: 193 x D: 106 Wall mounting (mm): c/c H: 160 x W: 125 Operating temperature: -30 °C to +50 °C Weight: 1.5 kg
Charging:
Charging power: 1.4–22 kW
6 A 1 phase – 32 A 3 phase (automatically adjusted in relation to available capacity)
Up to 7.36 kW at 32A 1 phase
Up to 22 kW at 32 A 3 phase (TN grid) Number of phases: 1 or 3 (fully dynamic) Connection point: Type-2 socket (IEC 62196-2) Voltage: 3 x 400 V AC/ 230 V AC (±10 %) Mains frequency: 50/60 Hz
Advanced load distribution
Up to 3 Charging Robots on the same circuit Built-in energy meter (±2 %)
Connectivity:
Built-in eSIM (LTE Cat M1/ 2G /GPRS) WiFi 2.4 GHz b/g/n connection
Easee Link RFTM
Control charging with the Easee app RFID/NFC reader
OCPP 1.6 via our API
Sensors and indicators:
Light strip showing the status of the charger Touch button for manual adjustment Temperature sensors in all main contacts
Colours:
White, Grey, Red, Blue and Black
Protection:
Integrated overload protection according to EN IEC 61851-1:2019
Built-in RCD for ground fault protection
(30 mA AC/ 6 mA DC) according to
EN 61008-1 and IEC 62955
Degree of protection: IP54 (the backplate is IP22 without cover)
Impact resistance: IK08
Fire class: UL94
Insulation class: II
Overvoltage category III
Theft Protection:
Electronics can be deactivated and tracked in case of theft (contact support if your device has been stolen).
The electronics can be permanently locked using a padlock (not included).
The charging cable can be locked permanently in the charging station.
Complies with the following regulations:
2014/53/EU (RED)
2011/65/EU (RoHS)
2014/30/EU (EMC)
2014/35/EU (LVD)
See DoC for details at easee.support
Power grids and fuses:
Installation network: TN, IT or TT
(detected automatically)
Installation circuit breaker: Max 40 A overload protection. The short-circuit current at the charging point (IkMax) must not exceed 10 kA. If required by the installation method, type-A earth fault protection can be used for the circuit.
Integrated circuit in backplate:
Wire cross-section: up to 16 mm2 (single cable)/ up to 10 mm2 (parallel connection) Cable diameter: 8–22 mm
Terminal tightening: 5 Nm
Cable strip length: 12 mm
